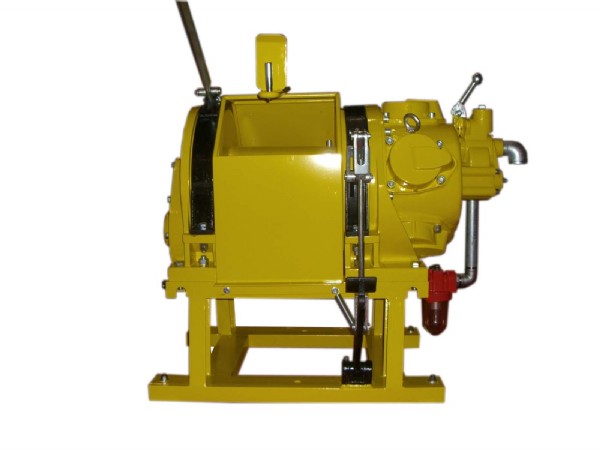

Pneumatic driven winches
Air winches
Specifications:
1. Compact in size, light in weight, portable to move and easy to install;
2. Reliable operation with little noise;
3. Stable in inflammable, explosive, wet, damp and other extremely operating conditions;
4. Low maintenance relieves your anxiety and assures you to use it freely.
5. High starting torque ensures it starting with load and performing hoisting, lowering and stopping actions easily;
6. Especially fit for hauling and lifting drilling pipes on the second platform of oilfields;
7. The Normal Pull Force can be tailor-made to your requirement.
Model
JQHSB-50*12
JQHSB-50*12
JQHSS-50*12
JQHSS-50*
12
JQHS-100*20
Pressure of Air Compressor(MPA)
0.6-0.8
0.6-0.8
0.6-0.8
0.6-08
0.6-0.8
Rated Traction Force(KN)
50
50
50
50
100
Wire Rope Velocity(M/MIN)
12
12
12
12
20
Pneumatic Motor
Rated Power(KW)
17
17
17
17
30
Cylinder Number(PCS)
5
5
5
5
5
Cylinder Diameter(MM)
130
130
130
130
160
Air Consumption(L/S)
247
247
247
247
400
Drum
Number(PCS)
1
1
1
1
1
Diamter(MM)
222
222
222
222
300
Width(MM)
335
435
610
335
620
Wheel Rim Diameter(MM)
465
465
465
465
660
Rope Content(M)
120
120
280
120
200
Wire Rope Diameter(MM)
15.875
140
15.875
15.875
24
Inlet Diameter(MM)
32
32
32
32
32
Dimension
Length(MM)
1200
1440
1511
1200
1638
Width(MM)
920
870
920
920
930
Height(MM)
989
1080
1016
989
1450
Weight(KGS)
498
548
556
540
1450
