4WD Winch

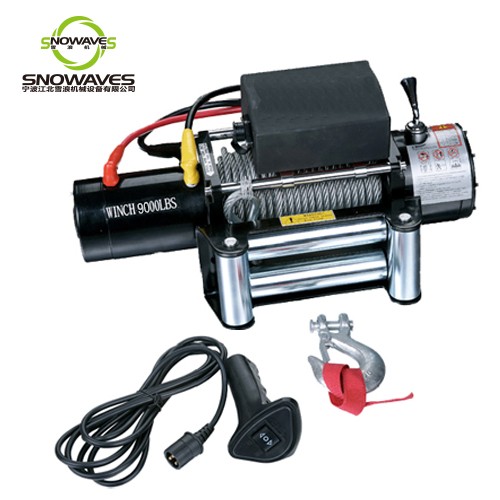

9000lbs Electric Winch
9000LB, WINCH SPECIFICATIONS
| Rated line pull | 9000lbs(4090kgs) single line |
| Motor | 3.8kw/5.2hp (12v); Series Wound |
| Control | Remote switch,12ft(3.7m) lead |
| Gear train | 3 Stage Planetary |
| Gear reduction ratio | 203:1 |
| Clutch | Sliding Ring Gear |
| Cable (Dia x L) | Ø8.3mm/28m |
| Braking action | Automatic In-The-Drum |
| Drum size (Dia x L) | Ø2.5''(64mm)x8.8''(233.5mm) |
| Battery | Recommended: 650CCA minimum for winching |
| Wireless Remote Control | Optional |
| Battery Leads | 2 gauge, 1.8m |
| Overall dimensions(L X W X H) | 20.8''x6.3''x8.5''(529x160x217mm) |
| Mounting bolt pattern | 255mm*114mm, Ø11 |
| Weight | N.W.36kg G.W.38kg |
| Packing size | 610 x 350 x 270mm 1PC/CTN |
| CBM | 0.058m3 |
