4WD Winch

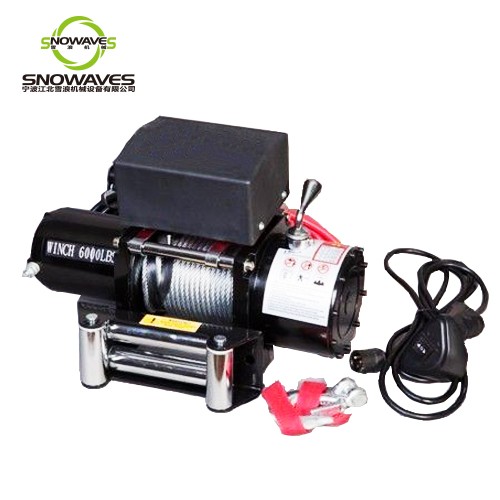

6000lbs Electric Winch
6000LB, WINCH SPECIFICATIONS
| Rated line pull | 6000lbs(2727kgs) single line |
| Motor | 2.0kw/2.7hp (12v); Series Wound |
| Gear reduction ratio | 235:1 |
| Gear train | 3 Stage Planetary |
| Cable (Dia x L) | Ø6.4mmx20m |
| Drum size (Dia x L) | Ø2.5''(64mm)x5.3''(133.5mm) |
| Braking action | Automatic In-The-Drum |
| Overall dimensions(L X W X H) | 16.3''x6.3''x8.5''(415x160x217mm) |
| Mounting bolt pattern | 165mm*114mm, Ø11 |
| Weight | N.W.31kg G.W.33kg |
| Packing size | 610 x 350 x 270mm 1PC/CTN |
| CBM | 0.058m3 |
Detail:
Pull, speed, amperes, volts
|
Line pull lbs(kgs) |
Line speed ft/min(m/min) |
Current a |
|
0 |
9.8(3.0) |
30 |
|
2000(907) |
7.5(2.3) |
120 |
|
4000(1814) |
4.9(1.5) |
210 |
|
6000(2722) |
2.9(0.9) |
260 |
Line pull and rope capacity in layer
|
Layer |
Rated line pull Lbs(kgs) |
Total rope on drum Ft(m) |
|
1 |
6000(2722) |
15(4.6) |
|
2 |
4990(2263) |
15.1(8) |
|
3 |
4280(1941) |
43(13) |
|
4 |
3730(1692) |
62(19) |
|
5 |
3310(1501) |
66(20) |
