ATV Winch

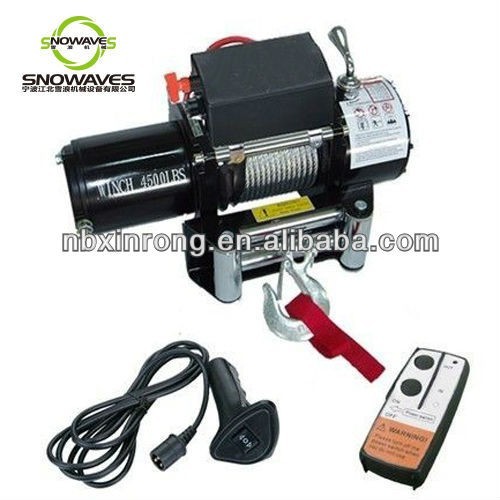

4500lbs Electric Winch
4500LB, WINCH SPECIFICATIONS
| Rated line pull | 4500lbs(2045kgs) single line |
| Motor | 1.7kw/2.3hp (12v); Series Wound |
| Gear reduction ratio | 235:1 |
| Gear train | 3 Stage Planetary |
| Cable (Dia x L) | Ø6mmx15m |
| Drum size (Dia x L) | Ø2.5''(64mm)x5.3''(133.5mm) |
| Braking action | Automatic In-The-Drum |
| Overall dimensions(L X W X H) | 16.3''x6.3''x8.5''(415x160x217mm) |
| Mounting bolt pattern | 165mm*114mm, Ø11 |
| Weight | N.W.31kg G.W.33kg |
| Packing size | 610 x 350 x 270mm 1PC/CTN |
| CBM | 0.058m3 |
Detail:
PULL, SPEED, AMPERES, VOLTS
|
Line pull lbs(kgs) |
Line speed ft/min(m/min) |
Current A |
|
0 |
24.(7.3) |
28 |
|
1500(680) |
22.5(6.9) |
78 |
|
2500(1134) |
15.6(4.8) |
115 |
|
3500(1588) |
9.5(2.9) |
147 |
|
4500(2041) |
7.2(2.2) |
176 |
LINE PULL AND ROPE CAPACITY IN LAYER
|
Layer |
Rated Line Pull lbs(kgs) |
Total Rope on Drum ft(m) |
|
1 |
4500(2041) |
4.9(1.5) |
|
2 |
3520(1597) |
14.4(4.4) |
|
3 |
2600(1179) |
19(5.8) |
|
4 |
2050(930) |
26.6(8.1) |
|
5 |
1630(739) |
34.4(10.5) |
