ATV Winch

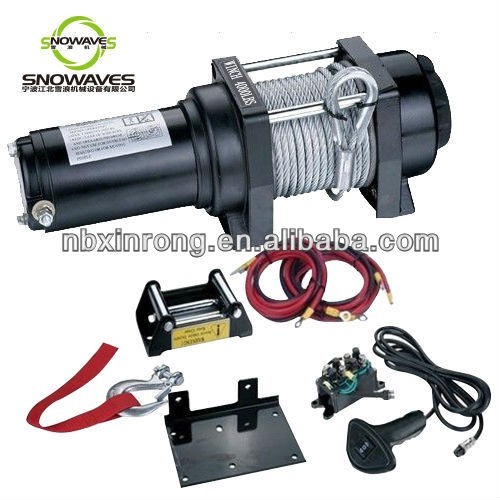

4000lbs Electric Winch
4000LB, WINCH SPECIFICATIONS
| Rated line pull | 4000lbs(1818kgs) single line |
| Motor | 1.3kw/1.8hp (12v) |
| Gear reduction ratio | 135：1 |
| Gear train | Differential Planetary |
| Cable (Dia x L) | Ø6mmx10.5m |
| Drum size (Dia x L) | Ø2”(51mm) x2.9”(74mm) |
| Braking action | Automatic In-The-Drum |
| Overall dimensions(L X W X H) | 13.4''x4.3''x4.4''(340mm X110mm X112mm) |
| Mounting bolt pattern | 120mm*76mm , Ø9 |
| Weight | N.W.10kg G.W.12kg |
| Packing size | 410 x 350 x 210mm 1PC/CTN |
| CBM | 0.03m3 |
Detail:
PULL, SPEED, AMPERES, VOLTS
|
Line pull lbs(kgs) |
Line speed ft/min(m/min) |
Current A |
|
0 |
9.5(2.9) |
26 |
|
1000(454) |
8.5(2.6) |
64 |
|
2000(907) |
7.2(2.2) |
98 |
|
3000(1361) |
5.2(1.6) |
148 |
|
4000(1814) |
3.6(1.1) |
170 |
LINE PULL AND ROPE CAPACITY IN LAYER
|
Layer |
Rated Line Pull lbs(kgs) |
Total Rope on Drum ft(m) |
|
1 |
4000(1814) |
4.9(1.5) |
|
2 |
3250(1474) |
14.4(4.4) |
|
3 |
2200(998) |
19(5.8) |
|
4 |
1700(771) |
26.6(8.1) |
|
5 |
1600(726) |
34.4(10.5) |
