ATV Winch

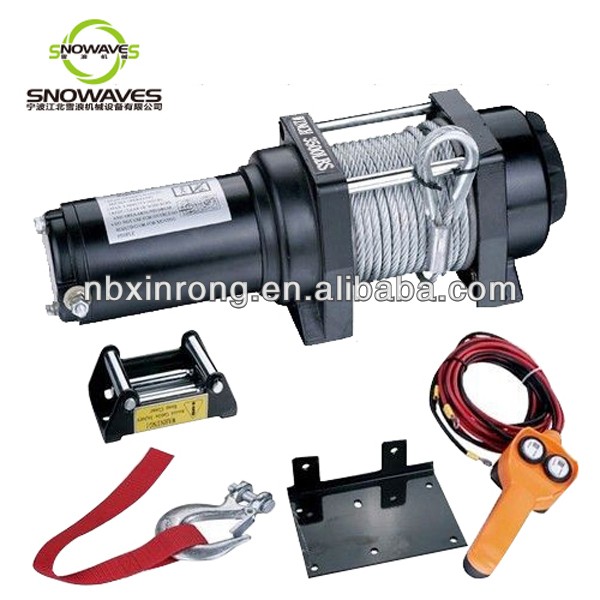

3500lbs Electric Winch
3500LB, WINCH SPECIFICATIONS
| Rated line pull | 3500lbs(1588kgs) single line |
| Motor | 1.2kw/1.4hp (12v) |
| Gear reduction ratio | 135：1 |
| Gear train | Differential Planetary |
| Cable (Dia x L) | Ø5.4mmx10.5m |
| Drum size (Dia x L) | Ø2”(51mm) x2.9”(74mm) |
| Braking action | Automatic In-The-Drum |
| Overall dimensions(L X W X H) | 13.4''x4.3''x4.4''(340mm X110mm X112mm) |
| Mounting bolt pattern | 120mm*76mm , Ø9 |
| Weight | N.W.10kg G.W.12kg |
| Packing size | 410 x 350 x 210mm 1PC/CTN |
| CBM | 0.03m3 |
PULL, SPEED, AMPERES, VOLTS
|
Line pull lbs(kgs) |
Line speed ft/min(m/min) |
Current A |
|
0 |
9.5(2.9) |
26 |
|
500(228) |
9.2(2.8) |
69 |
|
1500(680) |
7.9(2.4) |
105 |
|
2500(1134) |
6.6(2.0) |
136 |
|
3500(1588) |
4.6(1.4) |
168 |
LINE PULL AND ROPE CAPACITY IN LAYER
|
Layer |
Rated Line Pull lbs(kgs) |
Total Rope on Drum ft(m) |
|
1 |
3500(1588) |
5.6(1.7) |
|
2 |
2320(1052) |
15.1(4.6) |
|
3 |
1975(896) |
19.7(6.0) |
|
4 |
1890(857) |
27.9(8.5) |
|
5 |
1590(721) |
34.4(10.5) |
