ATV Winch

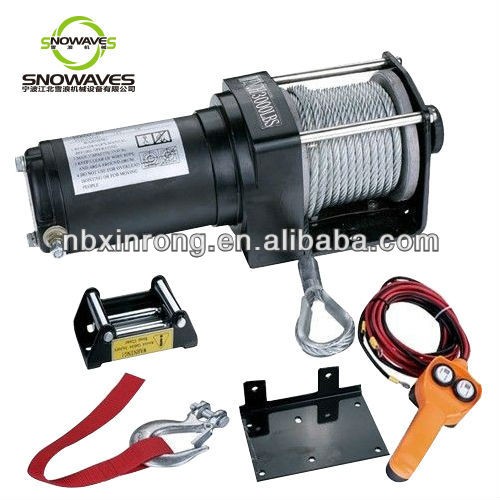

3000lbs Electric Winch
3000LB, WINCH SPECIFICATIONS
| Rated line pull | 3000lbs(1361kgs) single line |
| Motor | 1.1kw/1.4hp (12v) |
| Gear reduction ratio | 153：1 |
| Gear train | Differential Planetary |
| Cable (Dia x L) | Ø4.8mmx10.5m |
| Drum size (Dia x L) | Ø1.24”(31.5mm) x2.8”(72mm) |
| Braking action | Automatic In-The-Drum |
| Overall dimensions(L X W X H) | 11.8''x4''x4.1''(299mm X100mm X105mm) |
| Mounting bolt pattern | 76mm, Ø8.5 |
| Weight | N.W.8kg G.W.10kg |
| Packing size | 380 x 275 x 190mm 1PC/CTN |
| CBM | 0.02m3 |
Detail:
PULL, SPEED, AMPERES, VOLTS
|
Line pull lbs(kgs) |
Line speed ft/min(m/min) |
Current A |
|
0 |
9.5(2.9) |
10 |
|
1000(454) |
8.5(2.6) |
25 |
|
2000(907) |
7.2(2.2) |
64 |
|
3000(1361) |
5.2(1.6) |
150 |
LINE PULL AND ROPE CAPACITY IN LAYER
|
Layer |
Rated Line Pull lbs(kgs) |
Total Rope on Drum ft(m) |
|
1 |
3000(1361) |
5.6(1.7) |
|
2 |
2320(1052) |
15.1(4.6) |
|
3 |
1890(857) |
19.7(6.0) |
|
4 |
1590(721) |
27.9(8.5) |
|
5 |
1290(585) |
34.4(10.5) |
