ATV Winch

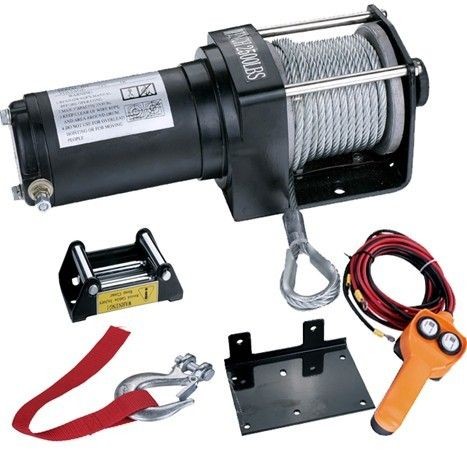

2500lbs electric winch
2500LB, WINCH SPECIFICATIONS
| Rated line pull | 2500lbs(1133kgs) single line |
| Motor | 0.9kw/1.2hp (12v); |
| Gear reduction ratio | 153：1 |
| Gear train | Differential Planetary |
| Cable (Dia x L) | Ø4.8mmx10.5m |
| Drum size (Dia x L) | Ø1.24”(31.5mm) x2.8”(72mm) |
| Braking action | Automatic In-The-Drum |
| Overall dimensions(L X W X H) | 11.8''x4''x4.1''(299mm X100mm X105mm) |
| Mounting bolt pattern | 76mm, Ø8.5 |
| Weight | N.W.8kg G.W.10kg |
| Packing size | 380 x 275 x 190mm 1PC/CTN |
| CBM | 0.02m3 |
Detail:
PULL, SPEED, AMPERES, VOLTS
|
Line pull lbs(kgs) |
Line speed ft/min(m/min) |
Current A |
|
0 |
10.8(3.3) |
14 |
|
1000(454) |
8.2(2.5) |
60 |
|
2000(907) |
3.6(1.1) |
100 |
|
2500(1134) |
9(2.7) |
120 |
LINE PULL AND ROPE CAPACITY IN LAYER
|
Layer |
Rated Line Pull lbs(kgs) |
Total Rope on Drum ft(m) |
|
1 |
2500(1133) |
5.2(1.6) |
|
2 |
2000(907) |
11.5(3.5) |
|
3 |
1630(740) |
17.1(5.2) |
|
4 |
1380(620) |
24.6(7.5) |
|
5 |
1190(540) |
34.4(10.5) |
