ATV Winch

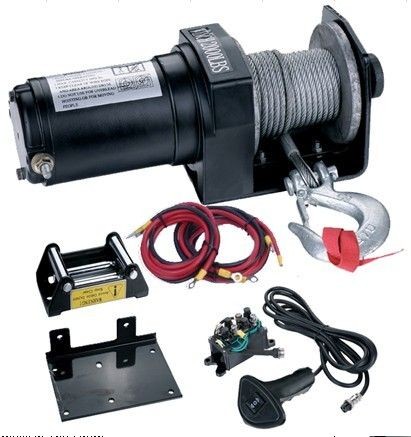

2000lbs electric winch
2000LB, WINCH SPECIFICATIONS
| Rated line pull | 2000lbs(907kgs) single line |
| Motor | 0.7kw/1.0hp (12v); 0.8kw/1.1hp (24v) |
| Gear reduction ratio | 153：1 |
| Gear train | Differential Planetary |
| Cable (Dia x L) | Ø4mmx9.2m |
| Drum size (Dia x L) | Ø1.24”(31.5mm) x2.8”(72mm) |
| Braking action | Automatic In-The-Drum |
| Overall dimensions(L X W X H) | 11.3''x4''x4.1''(286mm X100mm X105mm) |
| Mounting bolt pattern | 76mm, Ø8.5 |
| Weight | N.W.7kg G.W.9kg |
| Packing size | 380 x 275 x 190mm 1PC/CTN |
| CBM | 0.02m3 |
Detail:
PULL, SPEED, AMPERES, VOLTS
|
Line pull lbs(kgs) |
Line speed ft/min(m/min) |
Current A |
|
0 |
10.5(3.2) |
8 |
|
500(227) |
9.2(2.8) |
30 |
|
1000(454) |
7.2(2.2) |
60 |
|
1500(680) |
5.2(1.6) |
90 |
|
2000(907) |
2.9(0.9) |
120 |
LINE PULL AND ROPE CAPACITY IN LAYER
|
Layer |
Rated Line Pull lbs(kgs) |
Total Rope on Drum ft(m) |
|
1 |
2000(907) |
5.9(1.8) |
|
2 |
1630(740) |
8.2(2.5) |
|
3 |
1380(627) |
13.1(4.0) |
|
4 |
1190(540) |
21.3(6.5) |
|
5 |
1050(477) |
30.0(9.2) |
