Brake Winch

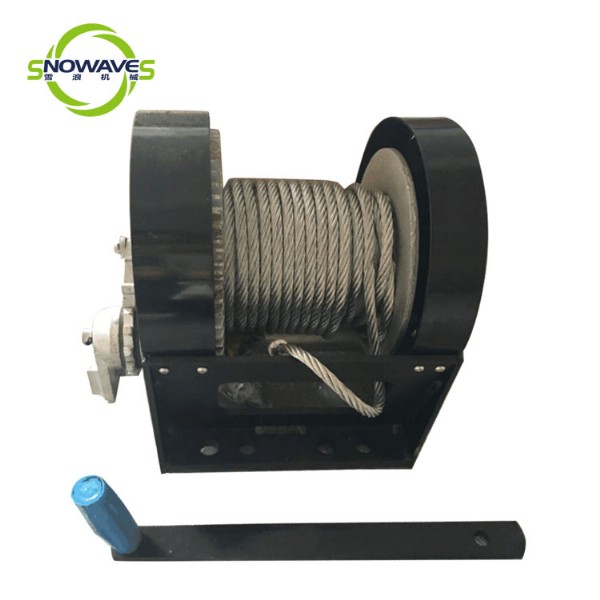

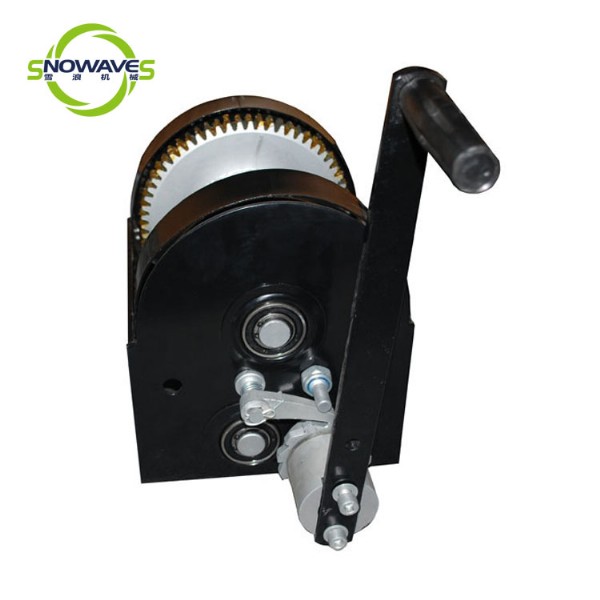

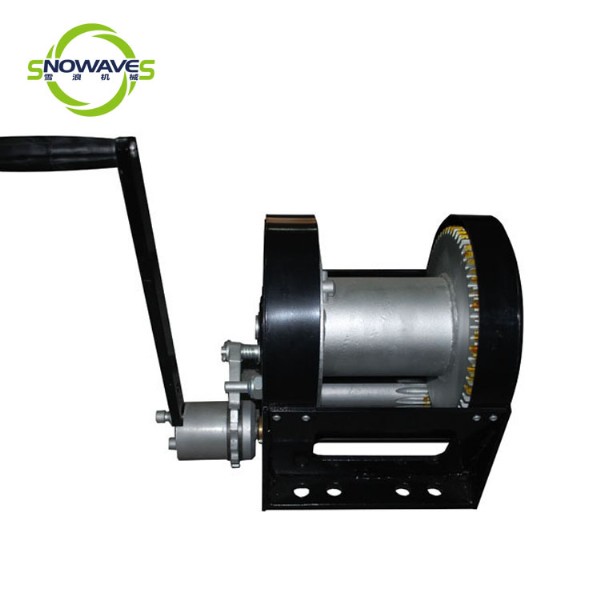

1500kg brake winch NC
| Item | BW1500NC |
| gear ratio | 13:1 |
| application | lifting |
| direct lift capacity | 1500kg |
| ultimate breaking load | 4960kg |
| unit weight | 24kg |
| ratchet type | self actuating |
| drum hub | 100mm |
| flange diameter | 183.5mm |
| drum width(id) | 133mm |
| Maximum cable capacity | 19m*10mm/30m*8mm |
| Boundary dimension(l*w*h) | 350mm*234mm*270mm |
| handle work radius | 288mm/336mm |
| surface treatment | Electrostatic spray coating and DACROMET |
