4WD Winch

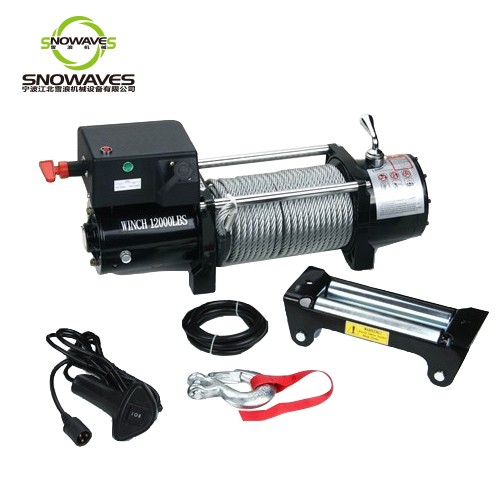

12000lbs Electric Winch
12000lbs Electric Winch
Products detail:

12000LB, WINCH SPECIFICATIONS

Rated Line Pull

12000LBS (5443kgs) single line

Motor

3.9kw/5.35hp, series wound

Control

Remote switch, 11.5ft(3.5m)lead

Gear train

3 Stage Planetary

Gear train ratio

265:1

Clutch

Sliding Ring Gear

Braking Action

Automatic In-The-Drum

Drum Size

Φ2.5"(64)mm×(8.8")233.5mm

Cable

Φ9.1mmX28m

Overall Dimensions

19.8"x6.3"x8.5"(527mm×160mm×217mm)

Mounting Bolt Pattern

255mm×114mm   Φ11

Weight

N.W.38kg    G.W.40Kg

Packing Size

610×350×270mm

PULL, SPEED, AMPERES, VOLTS

Line pull lbs(kgs)

Line speed ft/min(m/min)

Current A

0

 24.9(7.6)

80

2000(907)

16.1(4.9)

180

4000(1814)

10.8(3.3)

240

6000(2722)

 8.5(2.6)

280

8000(3628)

 7.2(2.2)

330

10000(4536)

 5.9(1.8)

380

12000(5443)

 5.2(1.6)

400

LINE PILL AND ROPE CAPACITY IN LAYER

Layer

Rated Line Pull

lbs(kgs)

Total Rope on Drum

ft(m)

1

12000(5443)

 13(5)

2

 9530(4323)

23(11)

3

 7540(3420)

69(21)

4

 5950(2699)

92(28)
